Clutches

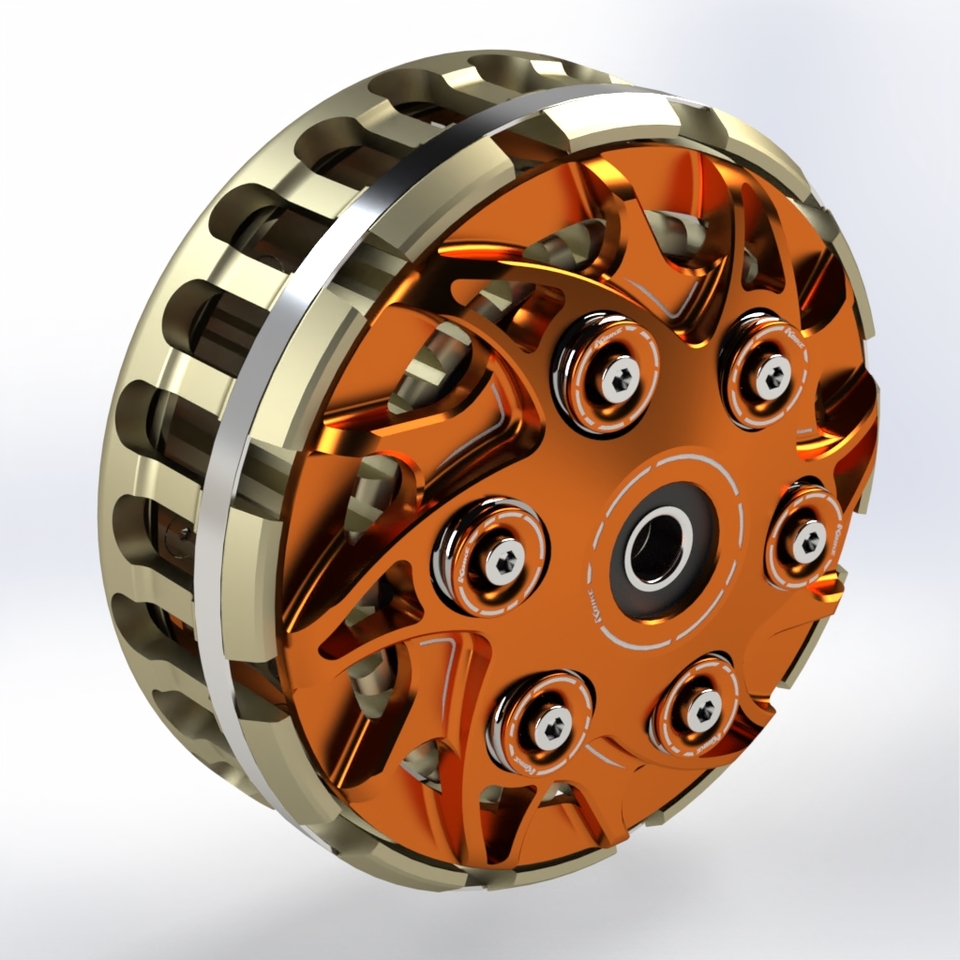

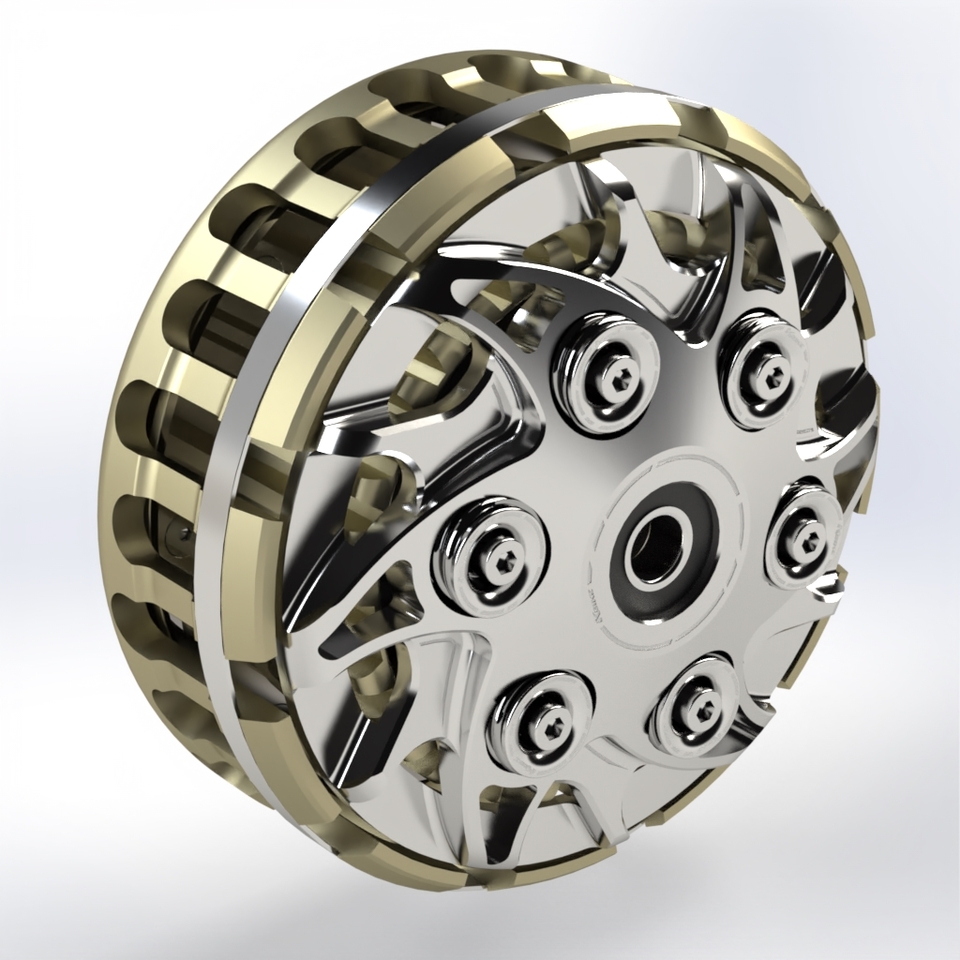

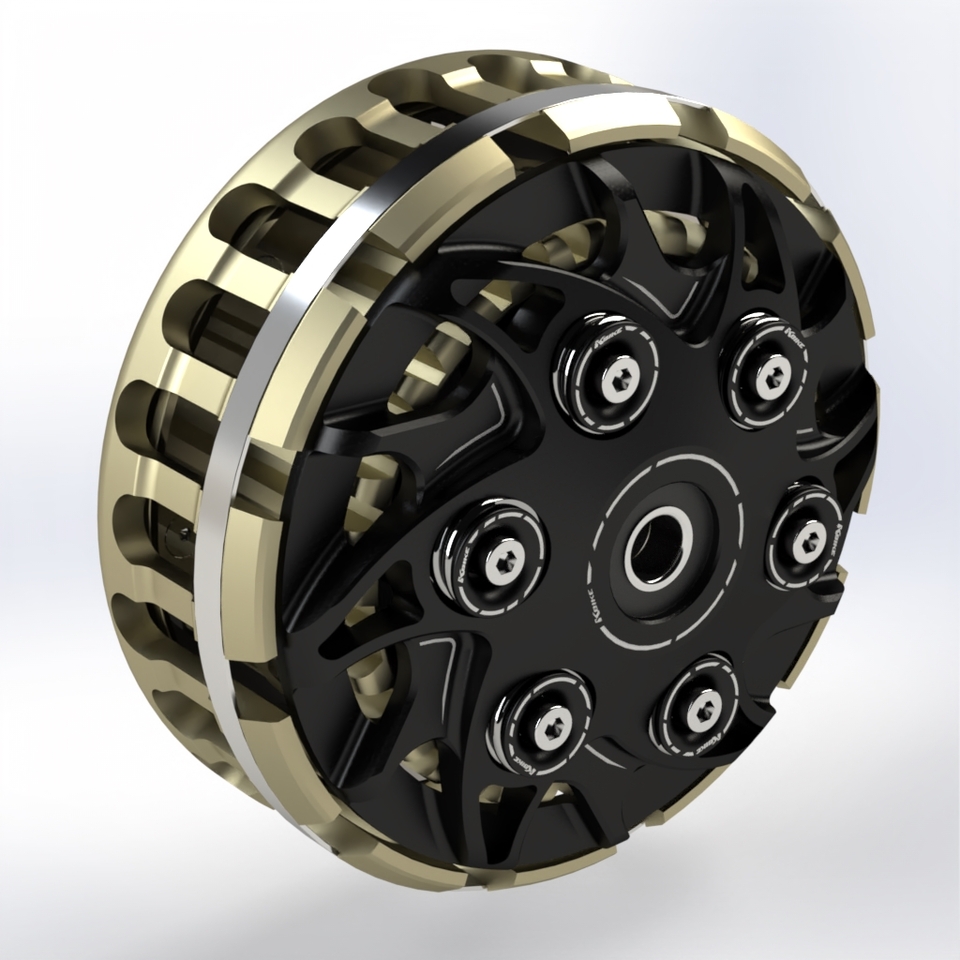

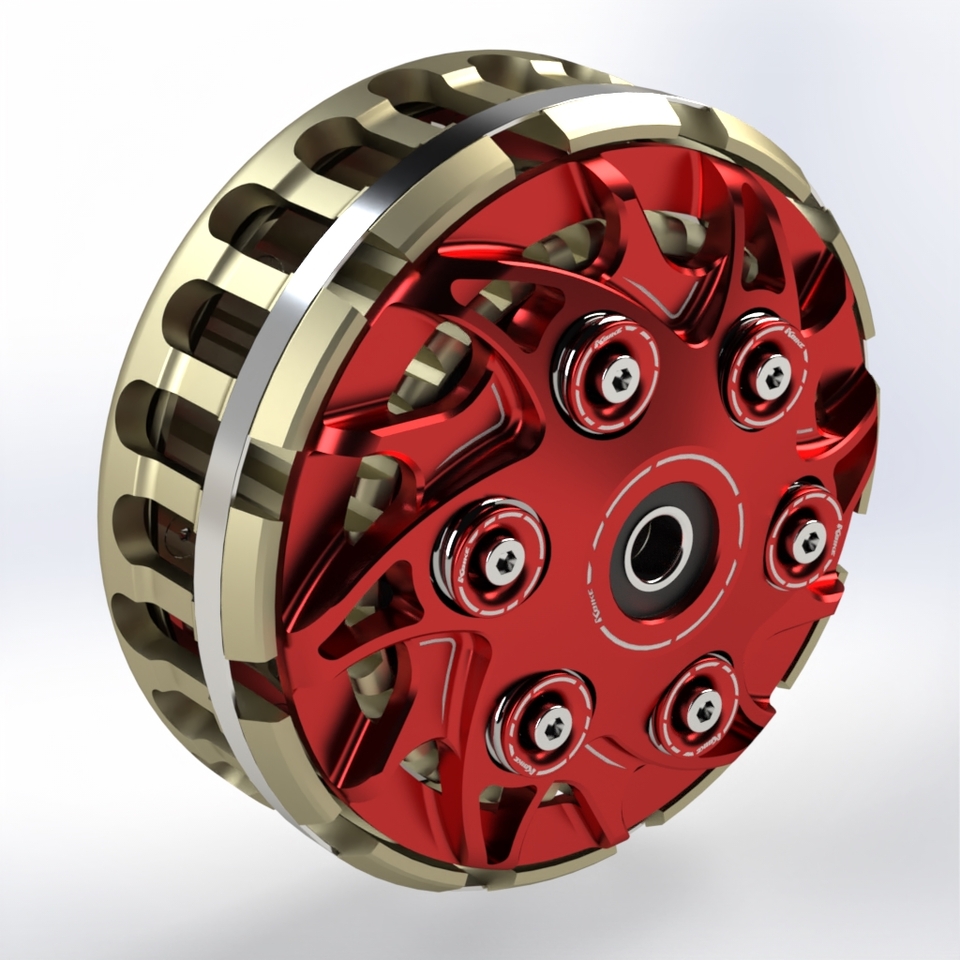

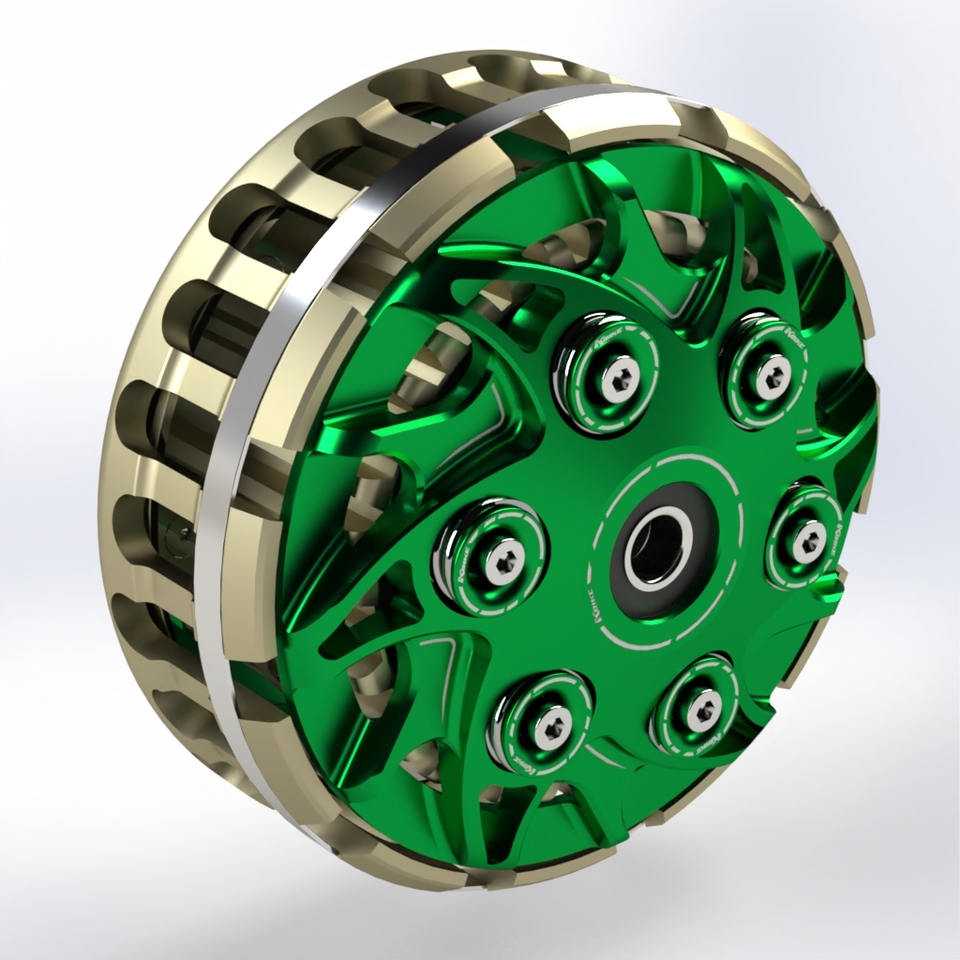

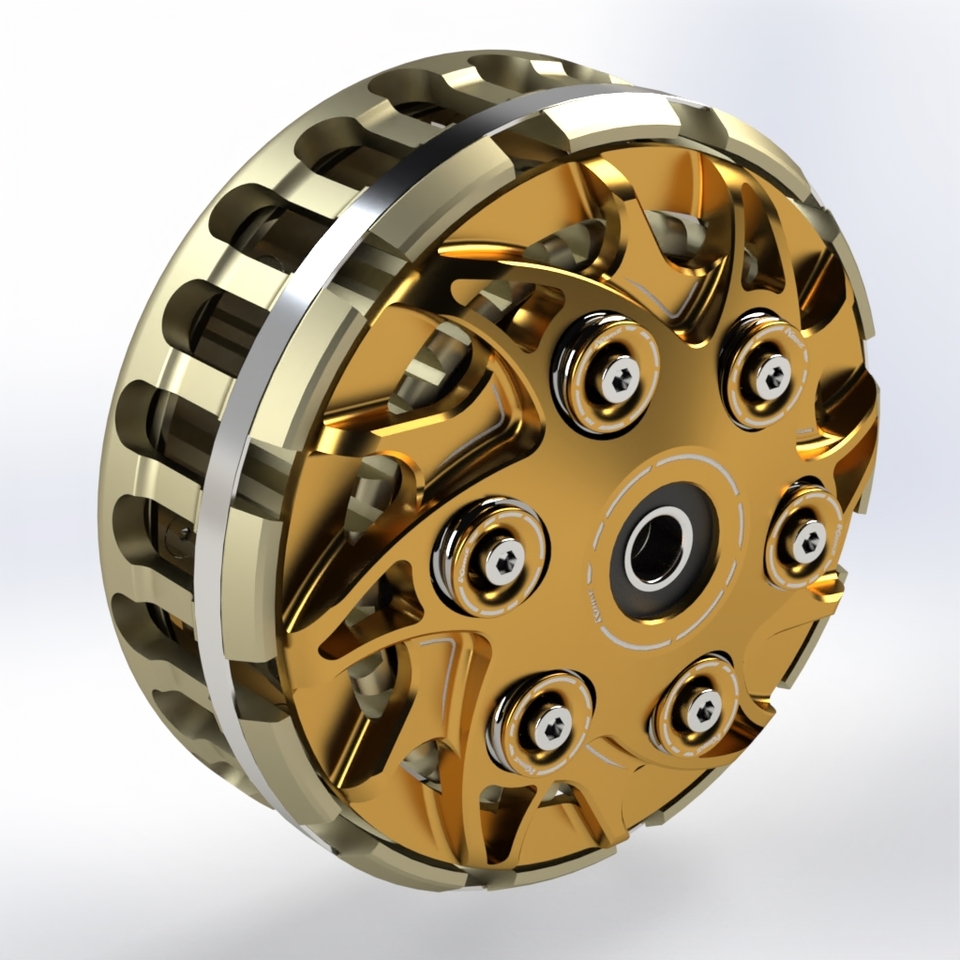

Slipper clutch with basket
FZA004
Lightweight 6-spring slipper clutch in Ergal with lightweight clutch basket.
Compatible with all Ducati models equipped with a dry clutch.
The kit includes:
• Ergal clutch housing
• Ergal clutch basket (code CAMP002D) with fixing screws (M8x20 10.9)
• Ergal clutch drum with 45° inclined ball ramps
• Ventilated pressure plate with slots to monitor disc wear
• Wide-petal spider spring
• Stainless steel balls, screws and black springs
• High-speed pressure plate bearing (already installed)
• Two retaining nuts machined from a single block, including the spring pressure flange
• One Belleville washer
• Casehardened and ground spacer with O-ring to ensure perfect clutch parallelism
Assembly Instructions
Illustrated step-by-step instructions are available online and downloadable in PDF format.
Compatible with original or racing discs.
The use of a slipper clutch offers numerous advantages, both on the road and on the track:
• Greater stability when braking and downshifting: prevents the rear wheel from locking or hopping during aggressive downshifts, improving safety and control of the bike.
• Smoother and more precise downshifts: reduces stress on the transmission and allows for faster and more confident downshifts.
• Less mechanical stress: limits rebound on the clutch bell, gearbox, and crankshaft, extending the life of the components.
• Superior riding comfort: the bike remains more composed, especially during hard braking or during sporty riding.
• Consistent performance: the system works progressively, ensuring a consistent and predictable response.
An ideal choice for those who want to improve the safety, feel, and performance of their Ducati.
All Kbike products are made for Racing use only.
